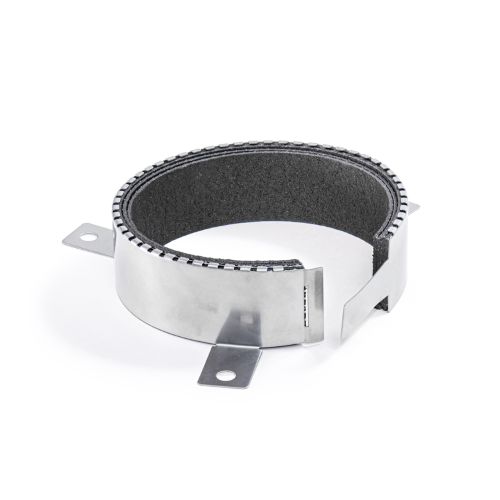

ARMAPROTECT FC1

Product Id: PRO-FC1

Category: Firestop Collar

ARMAPROTECT FC1 – Firestop Collar ArmaProtect FC1 is a firestop collar designed to maintain fire resistance at pipe penetrations through walls and floors. It consists of a solid galvanised sheet steel housing equipped with several layers of intumescent material. It is suitable for sealing combustible pipes without insulation, with diameters ranging from 50 mm to 160 mm.

Color	:	Housing colour: Silver grey Intumescent material colour: Anthracite
Packaging	:	50 mm to 160 mm diameter.

Send Enquiry

Description

ArmaProtect FC1 – Firestop Collar

ArmaProtect FC1 is a firestop collar designed to maintain fire resistance at pipe penetrations through walls and floors. It consists of a solid galvanised sheet steel housing equipped with several layers of intumescent material. It is suitable for sealing combustible pipes without insulation, with diameters ranging from 50 mm to 160 mm.

Specifications

Property	Specification
Brand	Armacell
Product name	ArmaProtect FC1
Product type	Firestop collar
Application	Sealing combustible pipes without insulation
Product range	50–160 mm diameter
Housing material	Galvanised sheet steel
Intumescent material	Flexible intumescent strip
Housing colour	Silver grey
Intumescent material colour	Anthracite
Operating temperature	−40°C to +70°C
Processing temperature	+5°C to +25°C
Housing reaction to fire	Class A1
Intumescent inlay reaction to fire	Class E
Fire resistance — specified wall constructions	Up to EI 120
Fire resistance — concrete floors	Up to EI 240
Sheet thickness	2 mm ± 0.2 mm
Inlay density	1.02–1.42 g/cm⊃3;
Expansion pressure	Greater than 0.6 N/mm⊃2;
Weight loss on heating	52–62% at 550°C for 30 minutes
Expansion ratio	12–22.5 times
Dangerous substances	No dangerous substances
Storage	Store in a cool, dry place at +5°C to +25°C; protect from frost
Compliance	ETA-21/1024 according to EN 1366-3
