Property Specification
Brand Armacell

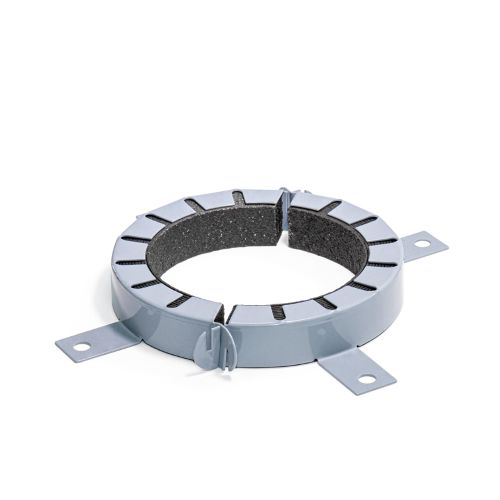

Product name ArmaProtect FC2
Product type Firestop collar
Application Sealing combustible pipes without insulation
Diameter range 32–400 mm
Housing material (up to Ø 200 mm) Powder-coated sheet steel
Housing material (Ø 225 mm and above) Galvanised sheet steel
Intumescent material Flexible intumescent strip
Housing colour Grey
Intumescent material colour Anthracite
Operating temperature −40°C to +70°C
Processing temperature +5°C to +25°C
Housing reaction to fire Class A1
Intumescent inlay reaction to fire Class E
Fire resistance Up to EI 120, subject to approved construction and installation
Use category Type X — intended for conditions exposed to weathering
Thickness 1.0–8.0 mm
Density 1,200 kg/m⊃3; ± 10%
Expansion ratio 18–38 times
Dangerous substance No dangerous substances
Storage Store in a cool, dry place at +5°C to +25°C; protect from frost
ComplianETA-22/0060 according to EN 1366-3
